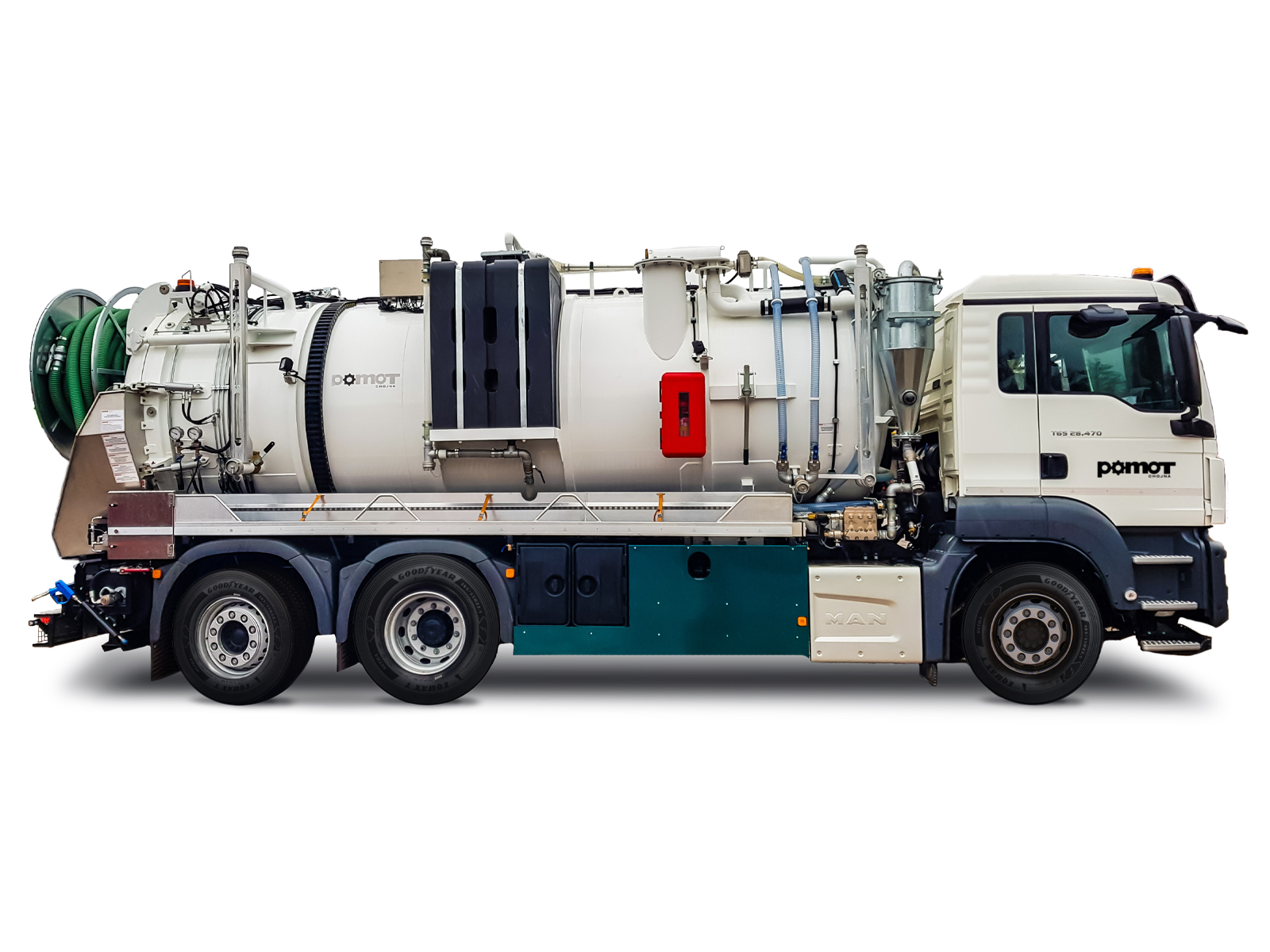

ZSAK 10000/13800 MUNICIPAL VEHICLE

We know that many of our clients are looking for economical solutions while maintaining the performance level of advanced combination vehicles. To meet our clients’ expectations, we have introduced a sewage tanker unit with a small water system. These units are mounted on truck chassis with a GVWR of 18t, 26t, and 32t, from various manufacturers such as MAN, Volvo, Mercedes, DAF, and Scania.

📱 Tomasz Sławiński: (+48) 885 775 510 | 📧 t.slawinski@pomot.pl
📱 Piotr Śliwiński: (+48) 691 897 230 | 📧 p.sliwinski@pomot.pl
Category: Tag:

Technical Specification

Parameters Description
Material – structural carbon steel S355

– wear-resistant carbon steel S500

– acid-resistant steel
Tank capacity from 6000 liters up to 20000 liters
Suction system from 600 m³/h
Small water system option 120 l/min, 160 bar
Suction arm option variant I 4500 mm, rotation angle 270°, lifting 27°, tilt 25°
Suction arm option variant II 5500 mm, rotation angle 270°, lifting 59°, tilt 12°
Hydraulic hose reel option hydraulic hose reel for suction hose
Control manual and remote control
Tank emptying via sliding piston, tipping, or gravity
Sludge pump optional installation of sludge pump
Anti-corrosion protection hot-dip galvanizing of the tank and intermediate frame
