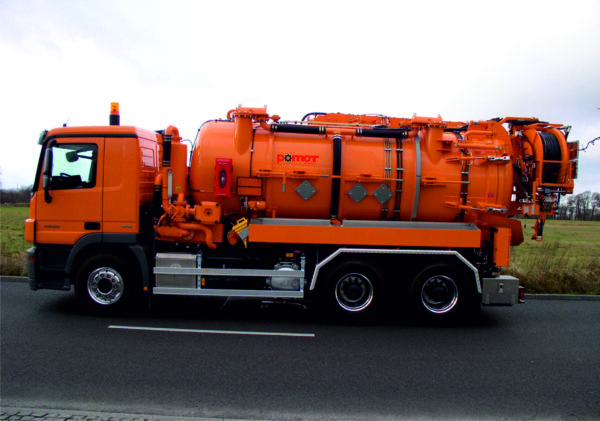

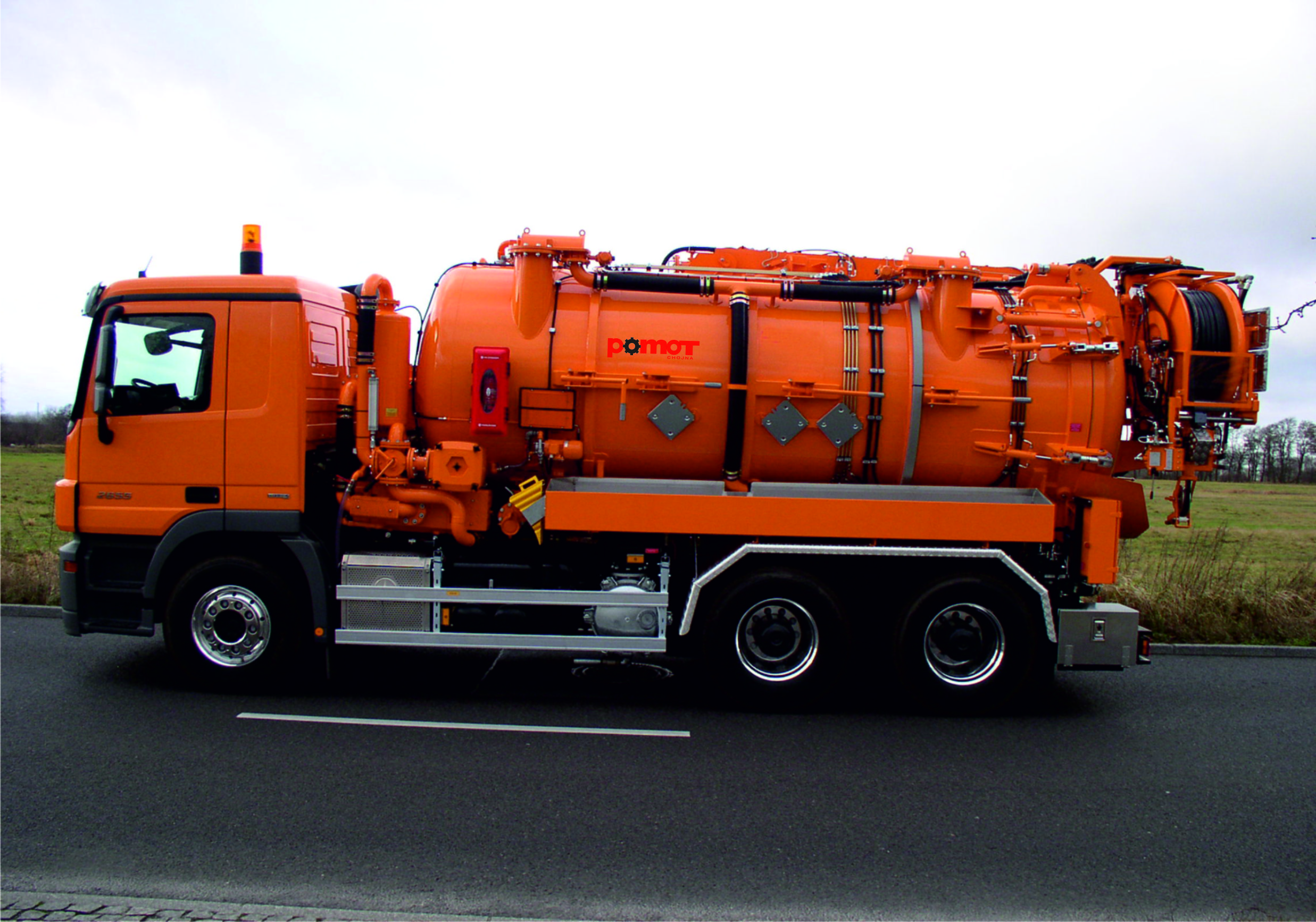

Pressure Suction-Flushing Vehicle on 6×2 Chassis, 26 t GVW – Boom Variant II

The ZSAK combined body is part of our standard production line of suction-pressure vehicles used for hydrodynamic cleaning.

The KOMBI unit can be freely configured — from a basic setup to a high-performance machine. Our hydraulic boom significantly reduces operator effort and enables precise operation. An ADR certificate is available for the transport of hazardous waste.

Compatible with chassis from MAN, DAF, MERCEDES, SCANIA, and VOLVO.

📱 Tomasz Sławiński: (+48) 885 775 510 | 📧 t.slawinski@pomot.pl
📱 Piotr Śliwiński: (+48) 691 897 230 | 📧 p.sliwinski@pomot.pl
Category: Tag:

Technical Specification

Parameter Description
Material – Structural carbon steel S355
– Wear-resistant carbon steel S500
– Acid-resistant stainless steel
Tank 10 m³–14 m³ with fixed or sliding partition
Suction system From 900 m³/h to 2500 m³/h
Pressure system 330 l/min at 170 bar
Boom reach – Variant I 4500 mm, rotation angle 270°, lift angle 27°, tilt angle 25°
Boom reach – Variant II 5500 mm, rotation angle 270°, lift angle 59°, tilt angle 12°
Control Manual and remote control
Tank discharge Via sliding piston or tipping mechanism
Sludge pump Option to install a sludge pump
