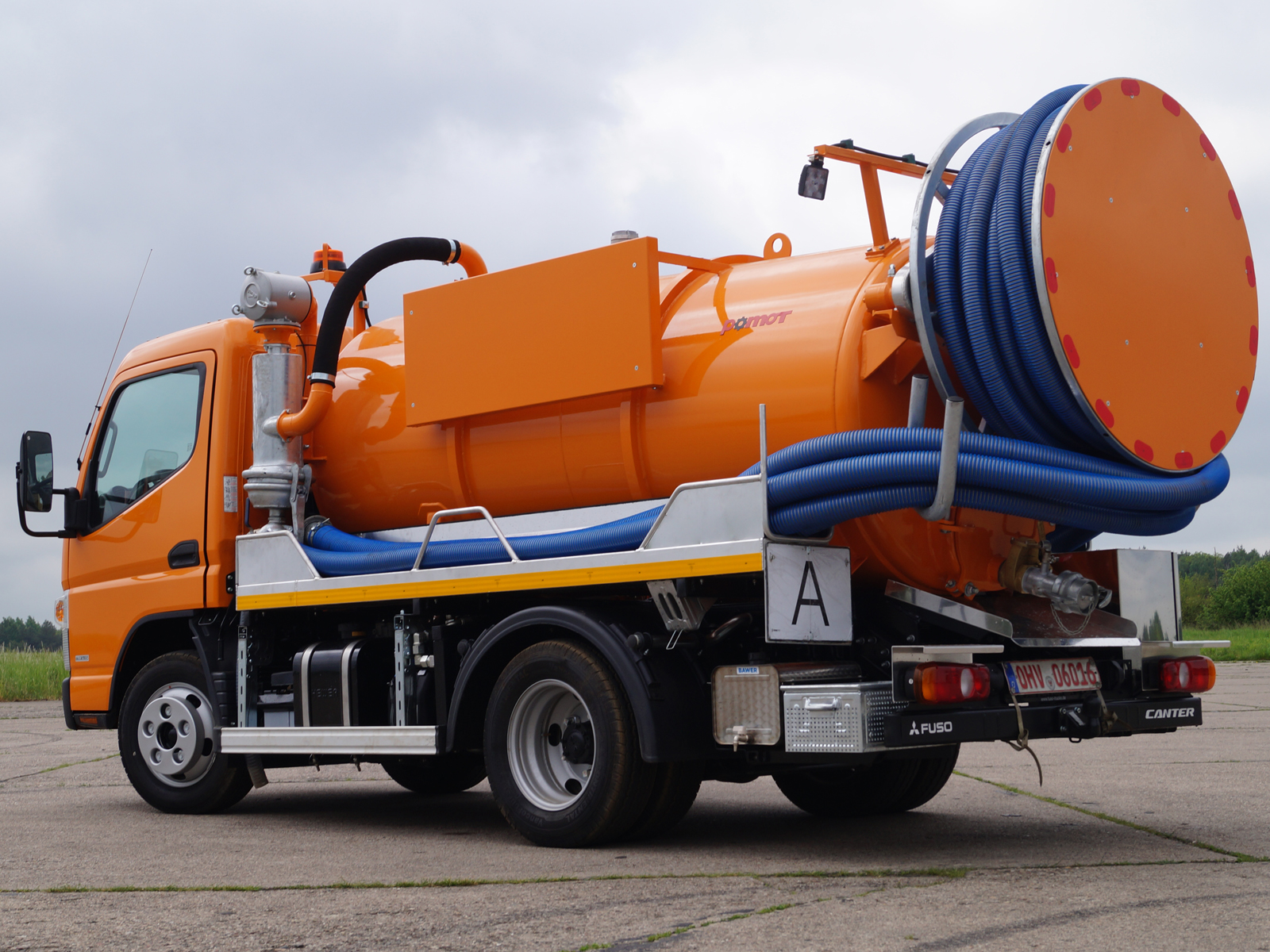

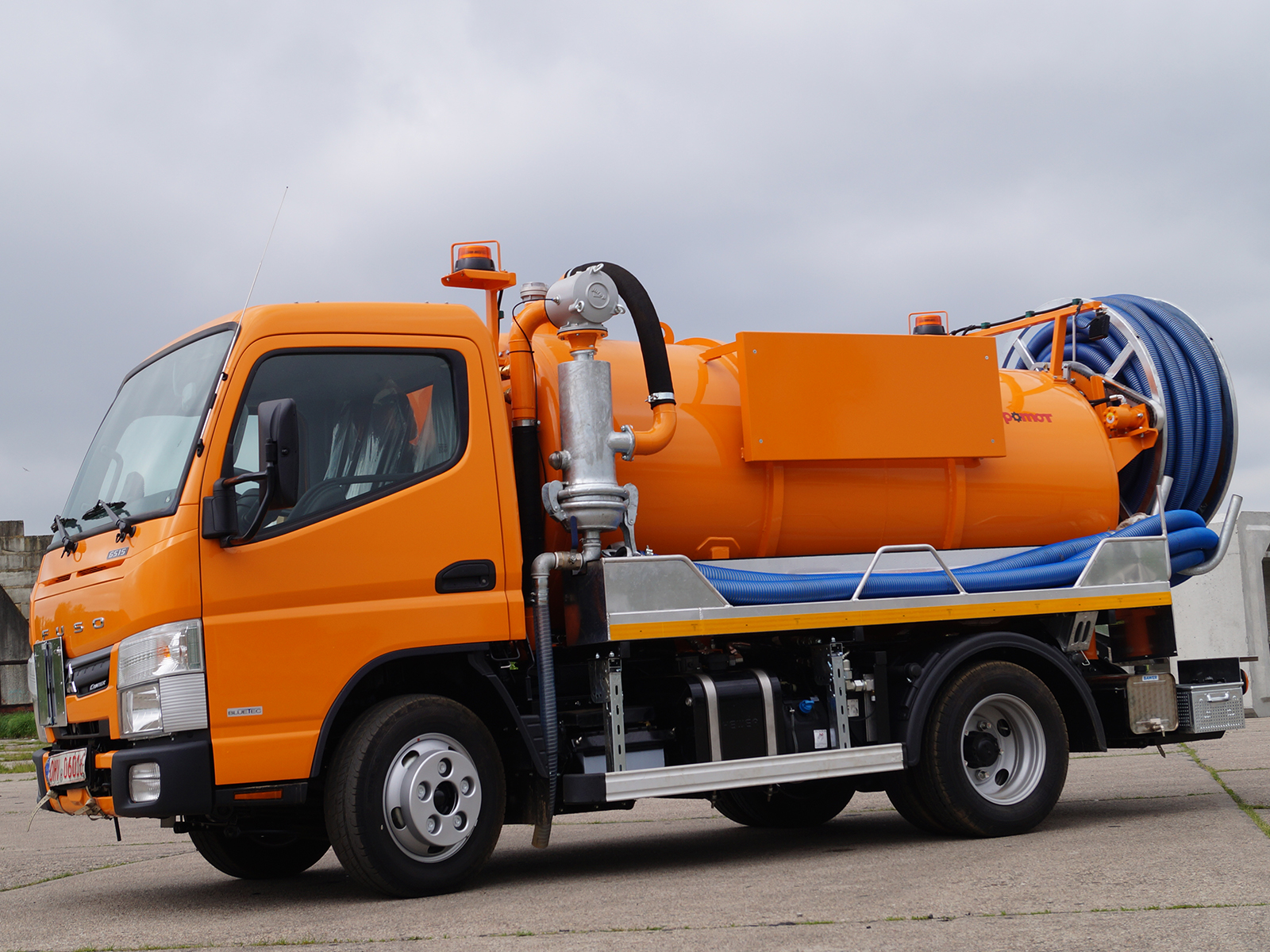

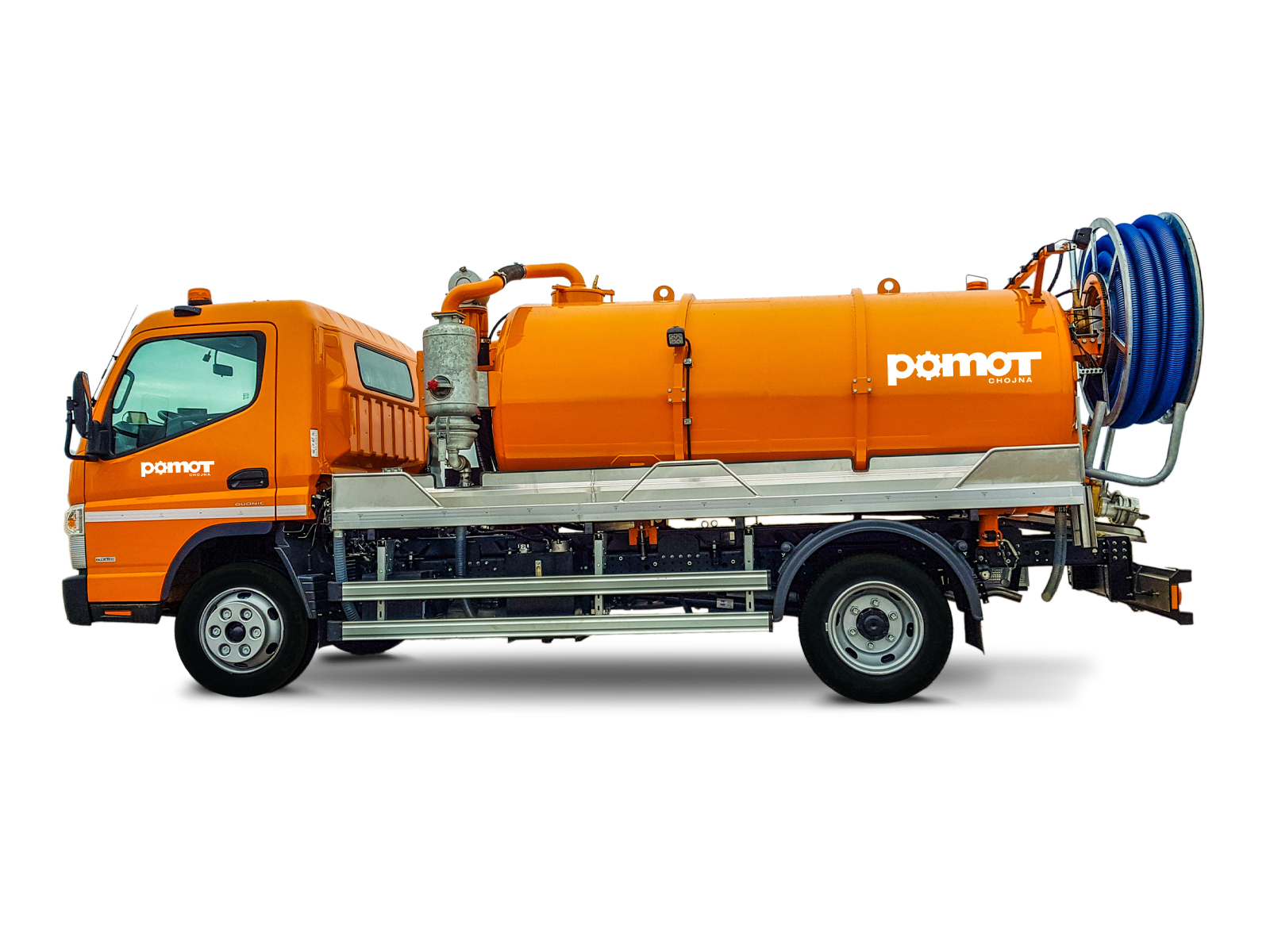

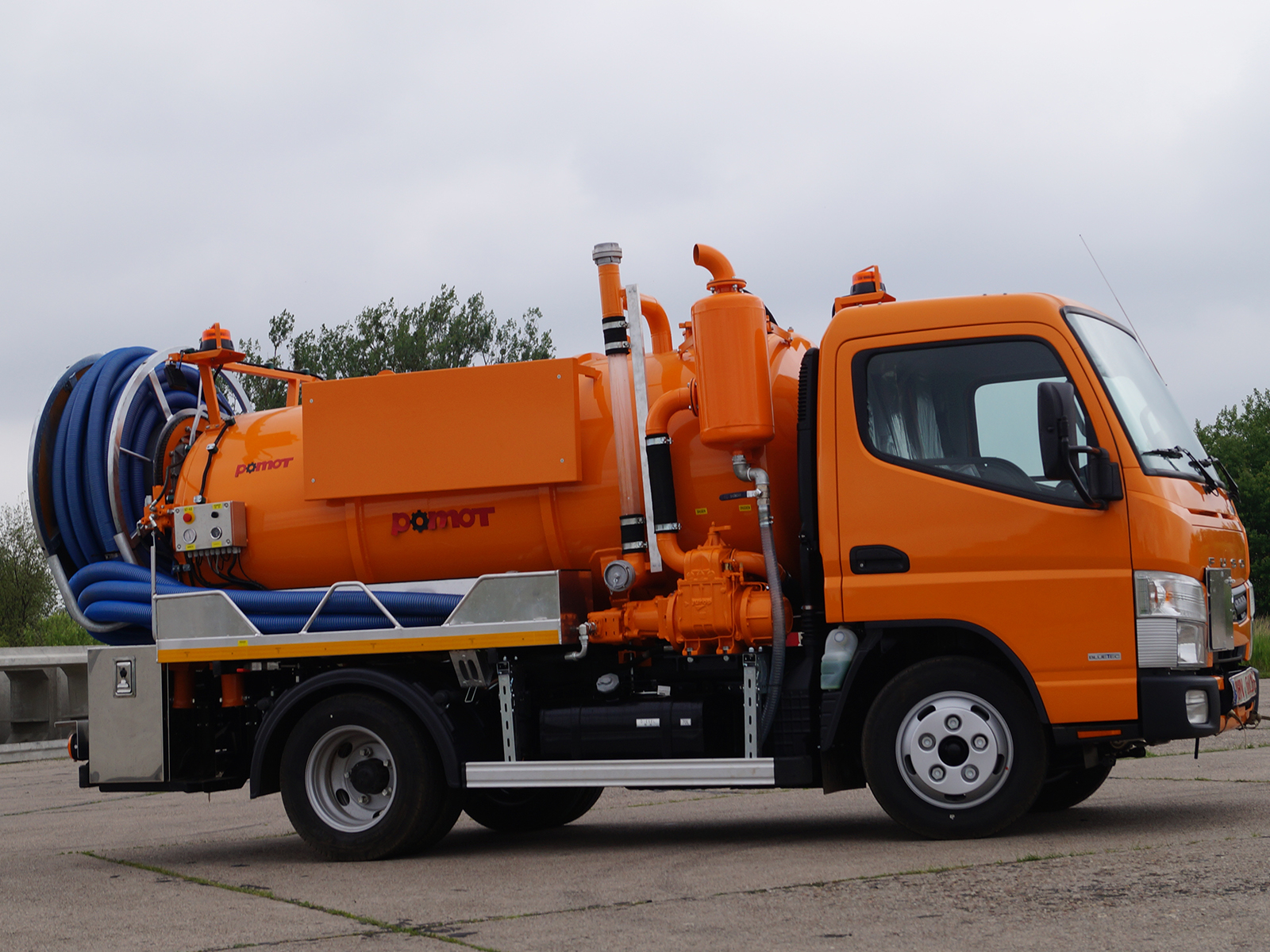

The compact and lightweight ZSAK/ZSA suction and flushing unit, mounted on an 8.5t GVW Fuso Canter chassis, is designed for a wide range of operations in hard-to-reach areas such as narrow streets, underground garages, and allotment gardens. These compact units deliver high performance comparable to that of larger vehicles.
| Specifications | Description |
|---|---|
| Material | Structural carbon steel S355 |
| Wear-resistant carbon steel S500 | |
| Acid-resistant stainless steel | |
| Tank | 3.5 m³ with a fixed partition: 2.5 m³ sludge / 1 m³ water |
| Suction system | 430 m³/h |
| Pressure system | 50 l/min, 150 bar |
| Pressure hose | DN 13, 60 m |
| Suction hose | DN 110, 6 m or 2 × 3 m |
| Tank discharge | By tipping or gravity |
| Control | Manual |
| Options | Side-mounted tool compartment, hydraulic hose reel |
A specialist vacuum tanker designed for small and medium-sized municipal service providers. Its primary functions include emptying septic tanks and sedimentation tanks, and transporting liquid and sludge waste. After activating the water pump, the unit can also be used for washing surfaces with a lance or cleaning sewer manholes using a dedicated nozzle.
Control of …
The ZA23700K is a vacuum tanker body with a sewer cleaning function, designed to handle the toughest tasks. With us, you’ll choose the best solutions for municipal operations.
The ZSAK combined body is part of our standard production line of suction-pressure vehicles used for hydrodynamic cleaning.
The KOMBI unit can be freely configured — from a basic setup to a high-performance machine. Our hydraulic boom significantly reduces operator effort and enables precise operation. An ADR certificate is available for the transport of hazardous waste.
<p data-start="486" ...
We know that many of our clients are looking for economical solutions while maintaining the performance level of advanced combination vehicles. To meet our clients’ expectations, we have introduced a sewage tanker unit with a small water system. These units are mounted on truck chassis with a GVWR of 18t, 26t, and 32t, from various manufacturers such as MAN, Volvo, …
